Rod seals

Rod seals for ISO installation spaces

Product Datasheet

Description

The FiPur® preferred dimensions of the rod seal profile *RS fit in the grooves according to ISO 5597. Like all sealing elements of the FiPur® product family, the components are extremely robust and offer the user maximum functional reliability, even under aggressive operating conditions. The primary task of this sealing profile is to keep the cylinder free of leakage even under the influence of changing ambient temperatures, diverse working conditions and acting lateral forces.

Benefits

  • Outstanding abrasion and extrusion resistance
  • Wide range of fluid compabilities
  • Materials available for extended fluid compatibility required in food technology and biodegradable hydraulic media
  • Ease of installation and assembly
  • Custom dimensions can be delivered quickly by lathe cutting capabilities

*RS - Rod Seal

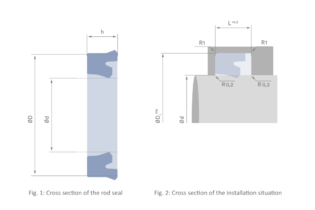

Overview Rod seals

Type Material d D H L Item
Rod Seal FiPur® 100 8 16 4,5 6,3 2.RS.0080.0160.FP100

Technical specifications

Item number 2.RS.0080.0160.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 16
Inside diameter (d) 8
Width (H) 4,5
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 0,93
Rod Seal FiPur® 100 10 16 5 5,7 2.RS.0100.0160.FP100

Technical specifications

Item number 2.RS.0100.0160.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 16
Inside diameter (d) 10
Width (H) 5
Mounting frame length (L) 5,7
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 0,65
Rod Seal FiPur® 100 10 18 5,7 6,3 2.RS.0100.0180.FP100

Technical specifications

Item number 2.RS.0100.0180.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 18
Inside diameter (d) 10
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,08
Rod Seal FiPur® 100 12 19 5 5,6 2.RS.0120.0190.FP100

Technical specifications

Item number 2.RS.0120.0190.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 19
Inside diameter (d) 12
Width (H) 5
Mounting frame length (L) 5,6
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 0,89
Rod Seal FiPur® 100 12 20 5,7 6,3 2.RS.0120.0200.FP100

Technical specifications

Item number 2.RS.0120.0200.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 20
Inside diameter (d) 12
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,22
Rod Seal FiPur® 100 14 21 5 5,6 2.RS.0140.0210.FP100

Technical specifications

Item number 2.RS.0140.0210.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 21
Inside diameter (d) 14
Width (H) 5
Mounting frame length (L) 5,6
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,01
Rod Seal FiPur® 100 14 24 7,3 8 2.RS.0140.0240.FP100

Technical specifications

Item number 2.RS.0140.0240.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 24
Inside diameter (d) 14
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,35
Rod Seal FiPur® 100 16 24 5,7 6,3 2.RS.0160.0240.FP100

Technical specifications

Item number 2.RS.0160.0240.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 24
Inside diameter (d) 16
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight
Rod Seal FiPur® 100 18 25 5 5,6 2.RS.0180.0250.FP100

Technical specifications

Item number 2.RS.0180.0250.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 25
Inside diameter (d) 18
Width (H) 5
Mounting frame length (L) 5,6
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,23
Rod Seal FiPur® 100 20 28 5,7 6,3 2.RS.0200.0280.FP100

Technical specifications

Item number 2.RS.0200.0280.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 28
Inside diameter (d) 20
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,83
Rod Seal FiPur® 100 22 30 5,7 6,3 2.RS.0220.0300.FP100

Technical specifications

Item number 2.RS.0220.0300.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 30
Inside diameter (d) 22
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,98
Rod Seal FiPur® 100 22 32 7,3 8 2.RS.0220.0320.FP100

Technical specifications

Item number 2.RS.0220.0320.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 32
Inside diameter (d) 22
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,32
Rod Seal FiPur® 100 25 33 5,7 6,3 2.RS.0250.0330.FP100

Technical specifications

Item number 2.RS.0250.0330.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 33
Inside diameter (d) 25
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,18
Rod Seal FiPur® 100 25 35 7,3 8 2.RS.0250.0350.FP100

Technical specifications

Item number 2.RS.0250.0350.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 35
Inside diameter (d) 25
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,69
Rod Seal FiPur® 100 28 36 5,7 6,3 2.RS.0280.0360.FP100

Technical specifications

Item number 2.RS.0280.0360.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 36
Inside diameter (d) 28
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,49
Rod Seal FiPur® 100 32 42 7,3 8 2.RS.0320.0420.FP100

Technical specifications

Item number 2.RS.0320.0420.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 42
Inside diameter (d) 32
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 4,53
Rod Seal FiPur® 100 36 44 5,7 6,3 2.RS.0360.0440.FP100

Technical specifications

Item number 2.RS.0360.0440.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 44
Inside diameter (d) 36
Width (H) 5,7
Mounting frame length (L) 6,3
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,08
Rod Seal FiPur® 100 36 46 7,3 8 2.RS.0360.0460.FP100

Technical specifications

Item number 2.RS.0360.0460.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 46
Inside diameter (d) 36
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,02
Rod Seal FiPur® 100 40 50 7,3 8 2.RS.0400.0500.FP100

Technical specifications

Item number 2.RS.0400.0500.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 50
Inside diameter (d) 40
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,50
Rod Seal FiPur® 100 45 55 7,3 8 2.RS.0450.0550.FP100

Technical specifications

Item number 2.RS.0450.0550.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 55
Inside diameter (d) 45
Width (H) 7,3
Mounting frame length (L) 8
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 6,11
Rod Seal FiPur® 100 50 65 11,4 12,5 2.RS.0500.0650.FP100

Technical specifications

Item number 2.RS.0500.0650.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 65
Inside diameter (d) 50
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 15,34
Rod Seal FiPur® 100 56 66 6,5 7,5 2.RS.0560.0660.FP100

Technical specifications

Item number 2.RS.0560.0660.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 66
Inside diameter (d) 56
Width (H) 6,5
Mounting frame length (L) 7,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 6,48
Rod Seal FiPur® 100 56 71 11,4 12,5 2.RS.0560.0710.FP100

Technical specifications

Item number 2.RS.0560.0710.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 71
Inside diameter (d) 56
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 16,91
Rod Seal FiPur® 100 63 78 11,4 12,5 2.RS.0630.0780.FP100

Technical specifications

Item number 2.RS.0630.0780.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 78
Inside diameter (d) 63
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 18,75
Rod Seal FiPur® 100 70 85 11,4 12,5 2.RS.0700.0850.FP100

Technical specifications

Item number 2.RS.0700.0850.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 85
Inside diameter (d) 70
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 20,58
Rod Seal FiPur® 100 80 95 11,4 12,5 2.RS.0800.0950.FP100

Technical specifications

Item number 2.RS.0800.0950.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 95
Inside diameter (d) 80
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 23,20
Rod Seal FiPur® 100 90 100 6,5 7,5 2.RS.0900.1000.FP100

Technical specifications

Item number 2.RS.0900.1000.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 100
Inside diameter (d) 90
Width (H) 6,5
Mounting frame length (L) 7,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 10,94
Rod Seal FiPur® 100 90 105 11,4 12,5 2.RS.0900.1050.FP100

Technical specifications

Item number 2.RS.0900.1050.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 105
Inside diameter (d) 90
Width (H) 11,4
Mounting frame length (L) 12,5
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 25,81
Rod Seal FiPur® 100 100 120 14,5 16 2.RS.1000.1200.FP100

Technical specifications

Item number 2.RS.1000.1200.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 120
Inside diameter (d) 100
Width (H) 14,5
Mounting frame length (L) 16
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 52,26
Rod Seal FiPur® 100 110 125 9,6 10,6 2.RS.1100.1250.FP100

Technical specifications

Item number 2.RS.1100.1250.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product Datasheet Material Datasheet CAD Model 2D-Drawing
Contact Quotation Request

Product attributes

Type Rod Seal
Brand FiPur®
Origin GER
Outside diameter (D) 125
Inside diameter (d) 110
Width (H) 9,6
Mounting frame length (L) 10,6
Profile (P) RS
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 27,62

Deviating installation spaces on request.
