Wiper for ISO installation spaces

Description

The FiPur® preferred wiper dimensions *SW fit in standard grooves according to DIN ISO 6195 type F. Like all sealing elements of the FiPur® product family, the components are extremely robust and offer the user maximum functional reliability, even under aggressive operating conditions. The primary task of this profile is to shield the cylinder against contamination such as sand, dirt, ice, etc., as well as to protect effectively against liquids.

Benefits

  • Outstanding abrasion and extrusion resistance
  • Wide range of compatibilities
  • For the extended resistance requirements in food technology and biodegradable hydraulic media, a number of suitable materials are available
  • Easy to assemble
  • Excludes environmental containments
  • Many dimensions can be delivered quickly by lathe cutting capabilities

*SW - Wiper (single wiper)

Overview Wiper

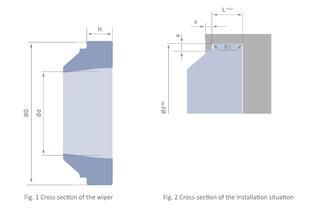

Type Material d D H L Item
Wiper FiPur® 100 12 20 7 4 2.SW.0120.0200.FP100

Technical specifications

Item number 2.SW.0120.0200.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 20
Inside diameter (d) 12
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,29
Wiper FiPur® 100 16 24 7 4 2.SW.0160.0240.FP100

Technical specifications

Item number 2.SW.0160.0240.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 24
Inside diameter (d) 16
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,60
Wiper FiPur® 100 18 26 7 4 2.SW.0180.0260.FP100

Technical specifications

Item number 2.SW.0180.0260.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 26
Inside diameter (d) 18
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,76
Wiper FiPur® 100 20 28 7 4 2.SW.0200.0280.FP100

Technical specifications

Item number 2.SW.0200.0280.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 28
Inside diameter (d) 20
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 1,92
Wiper FiPur® 100 22 30 7 4 2.SW.0220.0300.FP100

Technical specifications

Item number 2.SW.0220.0300.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 30
Inside diameter (d) 22
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,07
Wiper FiPur® 100 25 33 7 4 2.SW.0250.0330.FP100

Technical specifications

Item number 2.SW.0250.0330.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 33
Inside diameter (d) 25
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,31
Wiper FiPur® 100 28 36 7 4 2.SW.0280.0360.FP100

Technical specifications

Item number 2.SW.0280.0360.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 36
Inside diameter (d) 28
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,54
Wiper FiPur® 100 30 38 7 4 2.SW.0300.0380.FP100

Technical specifications

Item number 2.SW.0300.0380.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 38
Inside diameter (d) 30
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,70
Wiper FiPur® 100 32 40 7 4 2.SW0320.0400.FP100

Technical specifications

Item number 2.SW0320.0400.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 40
Inside diameter (d) 32
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 2,86
Wiper FiPur® 100 35 43 7 4 2.SW.0350.0430.FP100

Technical specifications

Item number 2.SW.0350.0430.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 43
Inside diameter (d) 35
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,11
Wiper FiPur® 100 36 44 7 4 2.SW.0360.0440.FP100

Technical specifications

Item number 2.SW.0360.0440.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 44
Inside diameter (d) 36
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,13
Wiper FiPur® 100 38 46 7 4 2.SW.0380.0460.FP100

Technical specifications

Item number 2.SW.0380.0460.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 46
Inside diameter (d) 38
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,32
Wiper FiPur® 100 40 48 7 4 2.SW.0400.0480.FP100

Technical specifications

Item number 2.SW.0400.0480.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 48
Inside diameter (d) 40
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,53
Wiper FiPur® 100 45 53 7 4 2.SW.0450.0530.FP100

Technical specifications

Item number 2.SW.0450.0530.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 53
Inside diameter (d) 45
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 3,93
Wiper FiPur® 100 50 58 7 4 2.SW.0500.0580.FP100

Technical specifications

Item number 2.SW.0500.0580.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 58
Inside diameter (d) 50
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 4,32
Wiper FiPur® 100 50 62 7 4 2.SW.0500.0620.FP100

Technical specifications

Item number 2.SW.0500.0620.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 62
Inside diameter (d) 50
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 8,80
Wiper FiPur® 100 55 63 7 4 2.SW.0550.0630.FP100

Technical specifications

Item number 2.SW.0550.0630.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 63
Inside diameter (d) 55
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 4,70
Wiper FiPur® 100 56 64 7 4 2.SW.0560.0640.FP100

Technical specifications

Item number 2.SW.0560.0640.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 64
Inside diameter (d) 56
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 4,79
Wiper FiPur® 100 60 68 7 4 2.SW.0600.0680.FP100

Technical specifications

Item number 2.SW.0600.0680.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 68
Inside diameter (d) 60
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,12
Wiper FiPur® 100 63 71 7 4 2.SW.0630.0710.FP100

Technical specifications

Item number 2.SW.0630.0710.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 71
Inside diameter (d) 63
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,35
Wiper FiPur® 100 65 73 7 4 2.SW.0650.0730.FP100

Technical specifications

Item number 2.SW.0650.0730.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 73
Inside diameter (d) 65
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,50
Wiper FiPur® 100 70 78 7 4 2.SW.0700.0780.FP100

Technical specifications

Item number 2.SW.0700.0780.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 78
Inside diameter (d) 70
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 5,89
Wiper FiPur® 100 75 83 7 4 2.SW.0750.0830.FP100

Technical specifications

Item number 2.SW.0750.0830.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 83
Inside diameter (d) 75
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 6,29
Wiper FiPur® 100 80 88 7 4 2.SW.0800.0880.FP100

Technical specifications

Item number 2.SW.0800.0880.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 88
Inside diameter (d) 80
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 6,74
Wiper FiPur® 100 85 93 7 4 2.SW.0850.0930.FP100

Technical specifications

Item number 2.SW.0850.0930.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 93
Inside diameter (d) 85
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 7,13
Wiper FiPur® 100 90 98 7 4 2.SW.0900.0980.FP100

Technical specifications

Item number 2.SW.0900.0980.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 98
Inside diameter (d) 90
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight
Wiper FiPur® 100 95 103 7 4 2.SW.0950.1030.FP100

Technical specifications

Item number 2.SW.0950.1030.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 103
Inside diameter (d) 95
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 7,91
Wiper FiPur® 100 100 108 7 4 2.SW.1000.1080.FP100

Technical specifications

Item number 2.SW.1000.1080.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 108
Inside diameter (d) 100
Width (H) 7
Mounting frame length (L) 4
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 8,31
Wiper FiPur® 100 105 117 10 5,5 2.SW.1050.1170.FP100

Technical specifications

Item number 2.SW.1050.1170.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 117
Inside diameter (d) 105
Width (H) 10
Mounting frame length (L) 5,5
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 16,89
Wiper FiPur® 100 110 122 10 5,5 2.SW.1100.1220.FP100

Technical specifications

Item number 2.SW.1100.1220.FP100
Material FiPur® 100

Minimum requirements on the surface quality of the counterparts of seals made of FiPur®

Dynamic seals

Rmax 0,8 bis 2,5 μm
Rmr * (c) 60-80%

* Measured at a cutting width c of 25% of the Rmax value from an imaginary reference zero line where the contact ratio is 5%.

Product attributes

Type Wiper
Brand FiPur®
Origin GER
Outside diameter (D) 122
Inside diameter (d) 110
Width (H) 10
Mounting frame length (L) 5,5
Profile (P) SW
Shore hardness 94 Shore A
Material FiPur® 100
Net weight 17,51

Larger installation spaces on request.
