Adjustable gas springs

Innovative Sealing Systems from FiPur®


Requirements/Tasks

  • Reliable sealing system consisting Piston Seal, Rod Seal, Wiper, Wear Ring and O-Ring
  • Pressure: > 400 bar
  • Temperature: > -25°C to +110°C
  • Media: High additive packaged oils
  • Lifespan: > 7.000h
  • Resistance to compressed nitrogen

Common design: Standard hydraulic elements

Disadvantages

  • High friction values
  • Limited media resistance
  • High wear and extrusion for the dynamic seals
  • Increased leakage at low temperatures

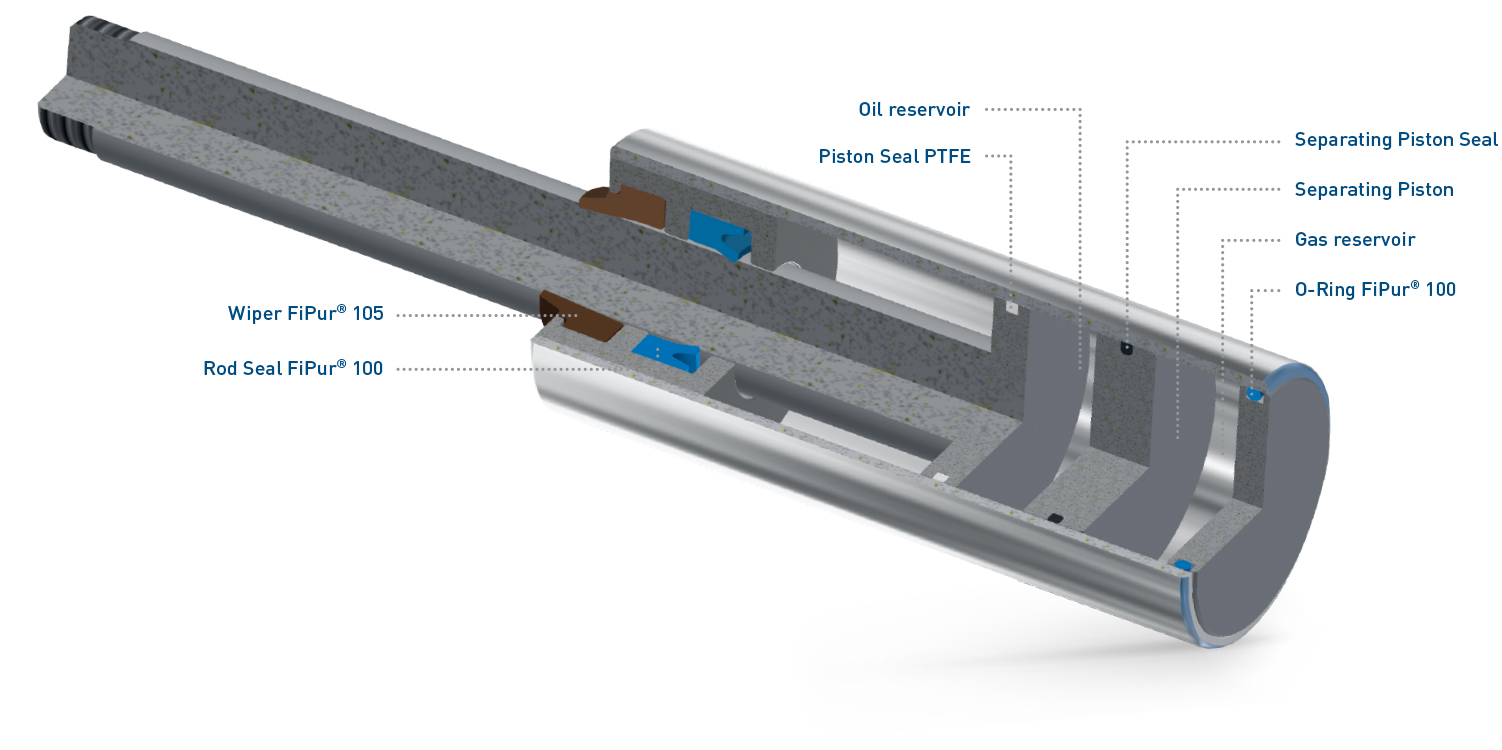

New design: Fietz sealing systems for adjustable gas springs

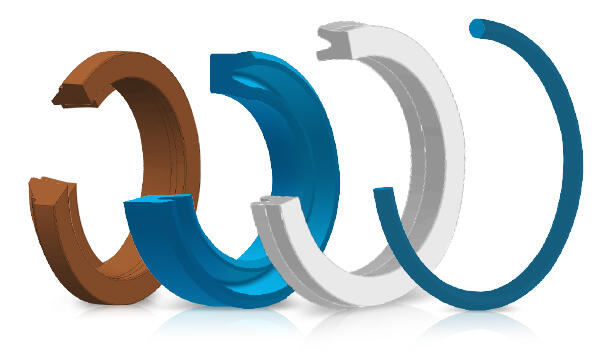

  • special customized wear rings, seals and wipers for permanent and reliable use
  • tailor-made FiPur® materials: FiPur® 100, FiPur® 110, FiPur® 200



 Justierbare_Industriegasfeder

User´s benefit

  • Reliable sealing system for wide range of application temperatures and media
  • Reduced operating cost extension of maintenance cycles
